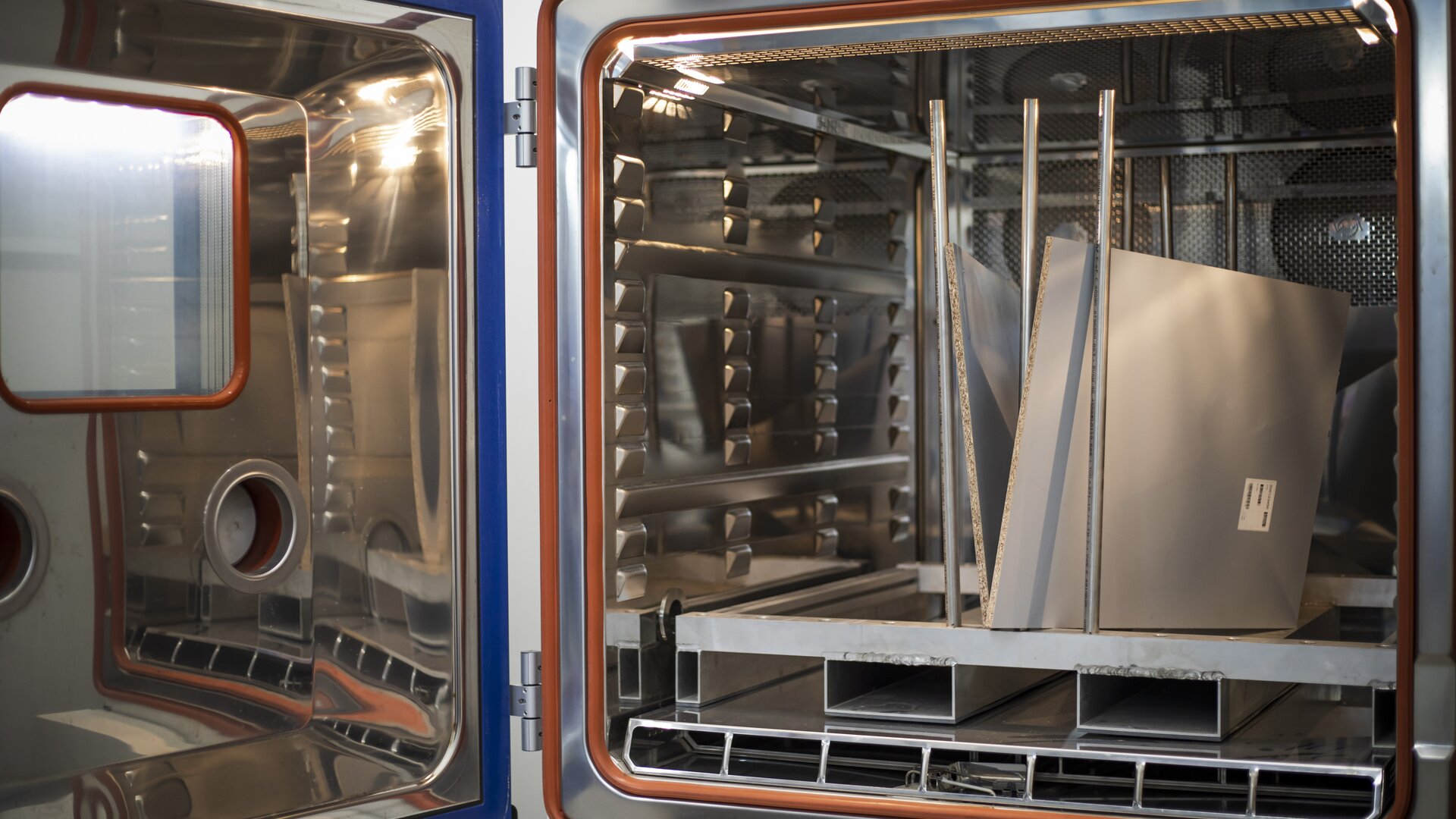

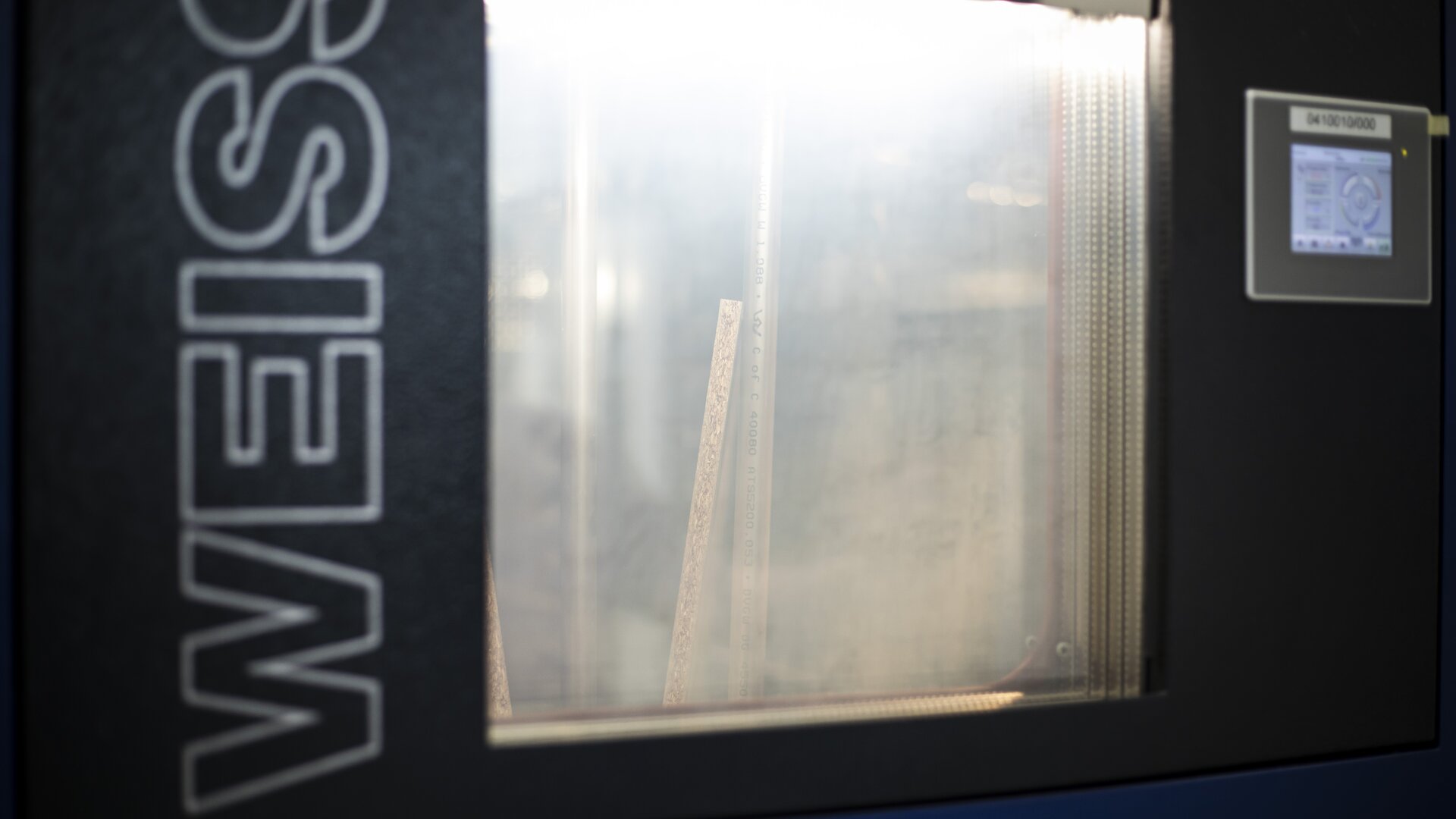

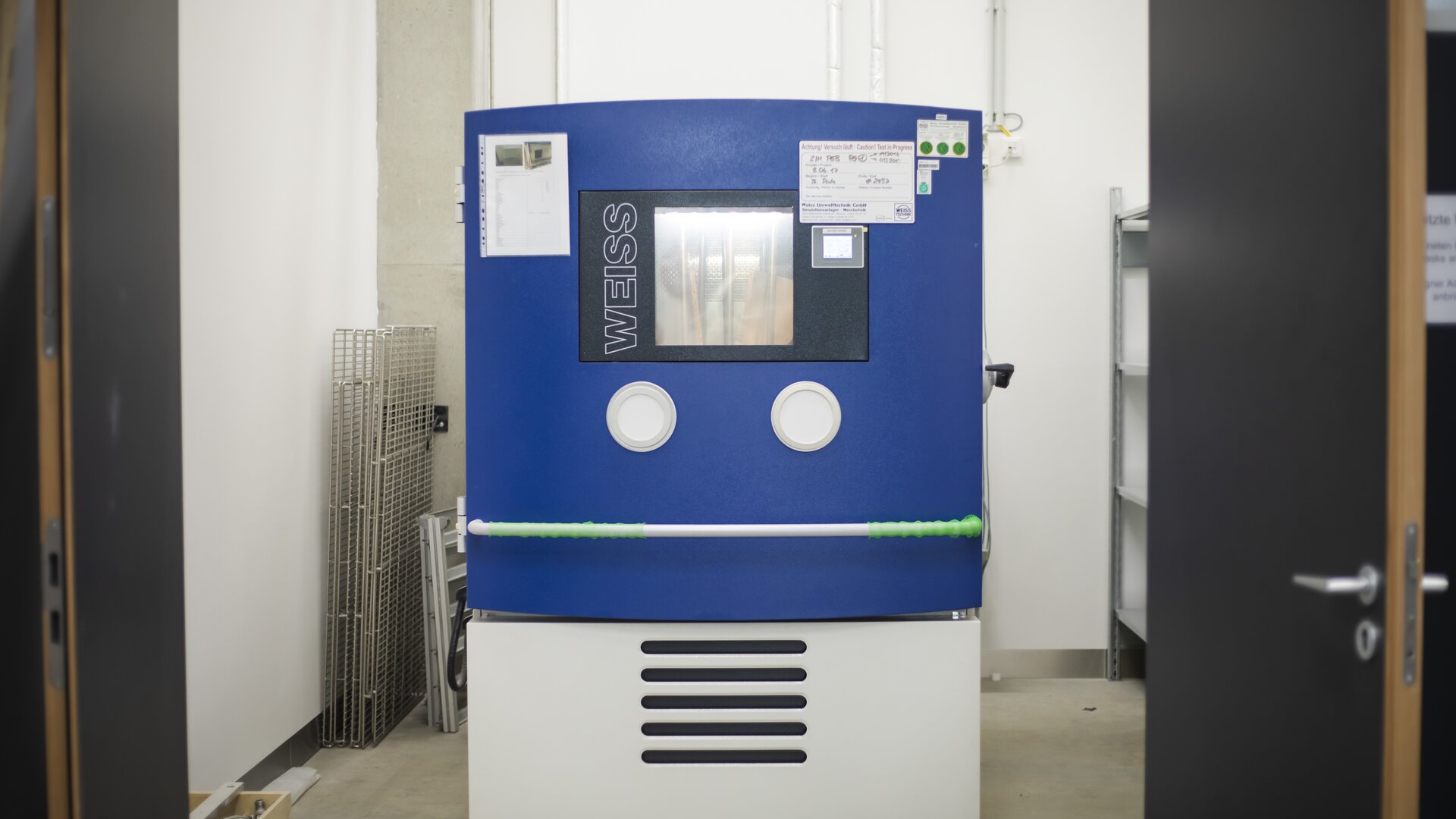

Climate chamber

Due to the possibilities of this testing device, products can be tested with regard to their behavior in various environmental situations. Thus, not only individual user requirements can be tested, it is also possible to simulate transport situations and analyze failure areas.

Test offer

  • individual environmental simulations and alternating cycle tests
  • Quality assurance of products with regard to their behavior in various environmental situations
  • Stress tests with extreme climates (proof of a product's functionality)
  • Simulation of storage and aging processes
  • Environmental simulations can be coupled with other test parameters (e.g. deflection or weight changes during the test)



Technical data

Type

WK3-1500/0 (white technology)

Max. possible dimensions for specimen

Depth: 1,45 m

Width: 1,05 m

Height: 0,9 m (0,7 m)

Note: max loading depends on specimen dimensions

Climatic range


  • temperature: +/-0°C bis 90°C
  • Humidity: ca. 10 % bis 99 %


Other


  • additional measurement technology possible, as feed-through openings are available
  • climatic unit is equipped for extended environmental simulations
  • Services for climatic tests based on IEC 60068-3-6




Relevant standards and guidelines

  • DIN EN IEC 60721-3-1
  • DIN EN 60068-1
  • DIN EN 60068-2-2
  • DIN EN 60068-2-14
  • DIN EN 60068-2-30
  • DIN EN 60068-2-38
  • Stability studies based on ICH Guidelines (Q1A)
  • Manufacturer standards available on request

Door standards:

  • DIN EN 1294:2000-07
  • DIN EN 1121:2000-09
  • DIN EN 12219:2000-06
